Horizontal Storage Tank

Short on space but need reliable liquid storage? Our horizontal storage tank is your perfect fit. Great for storing diesel, coolant, edible oil, or industrial chemicals in workshops, small factories, or remote sites, its low-profile design saves floor space while delivering solid performance—easy to install even in tight corners, and built to last.

Send Inquiry

Short on space but need reliable liquid storage? Our horizontal storage tank is your perfect fit. Great for storing diesel, coolant, edible oil, or industrial chemicals in workshops, small factories, or remote sites, its low-profile design saves floor space while delivering solid performance-easy to install even in tight corners, and built to last.

Key Features & Material:

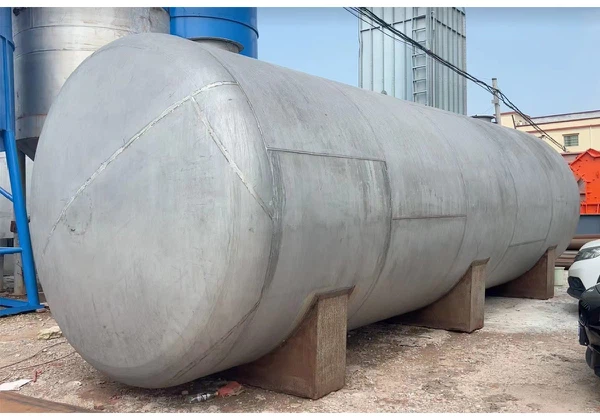

Features a horizontal cylindrical structure with reinforced end caps for pressure resistance. Tank body uses Q235B carbon steel or 304 stainless steel (for corrosive liquids), with anti-rust powder coating. Equipped with top-mounted manholes, bottom discharge valves, and level sensors-ensuring easy access and precise liquid control.

Parameter	Specification
Volume	5-500 m³ (customizable)
Length	3-15m
Diameter	1-3m
Design Pressure	0.1-1.6MPa
Working Temperature	-20~80℃

Advantages:

Saves 50% floor space vs. vertical tanks-ideal for narrow areas. Low center of gravity reduces tipping risk, enhancing safety. Bottom discharge design allows complete liquid emptying, avoiding waste. Easy to transport (fits standard trucks) and install with simple concrete supports. Customizable material options for diverse liquid types.

Services:

Custom size/material based on liquid properties; factory pre-testing before delivery; on-site installation and pipe connection; pressure calibration service; 2-year tank body warranty and 1-year for valves/sensors.
